产品型号
| Technical Characteristics | |
| Diesel engine | |
| Model | Cummins |
| Power | 58 kW |
| Rotation | |
| Rotation speed | 0-180 rpm |
| Maximum spindle torque | 4 400 Nm |
| Thrust and pullback | |
| Thrust and pullback speed | 0-46 m/min |
| Thrust and pullback force | 110 kN |
| Mud pump | |
| Maximum capacity | 160 L/min |
| Maximum pressure | 10 MPa |
| Other Characteristics | |
| Drilling angle | 8-16° |
| Maximum elevation angle | 25° |
| Drill rod | Ø50×2000 mm |
| Motion speed | 0-3 km/h |
| Weight and dimensions | |
| HDD rig weight | 5 500 kg |
| Dimensions (L×W×H) | 4.70×1.90×2.00 m |
| STANDARD CONFIGURATION | |

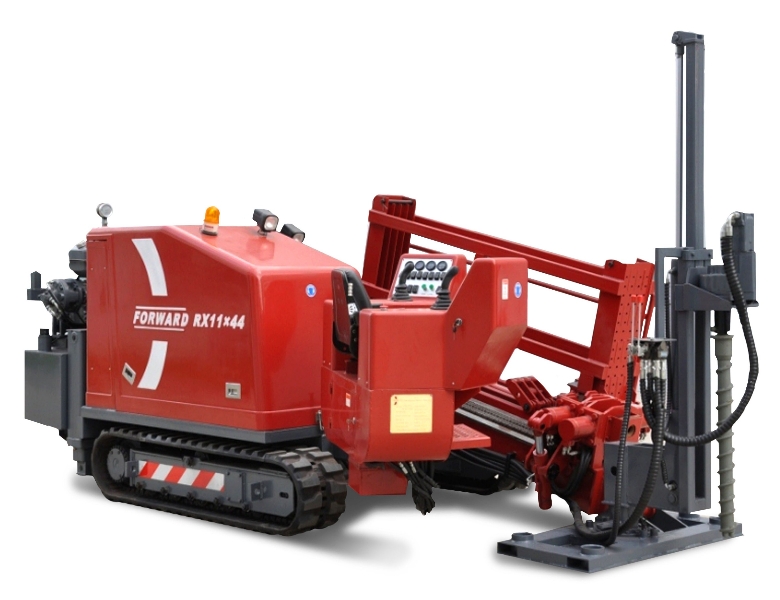

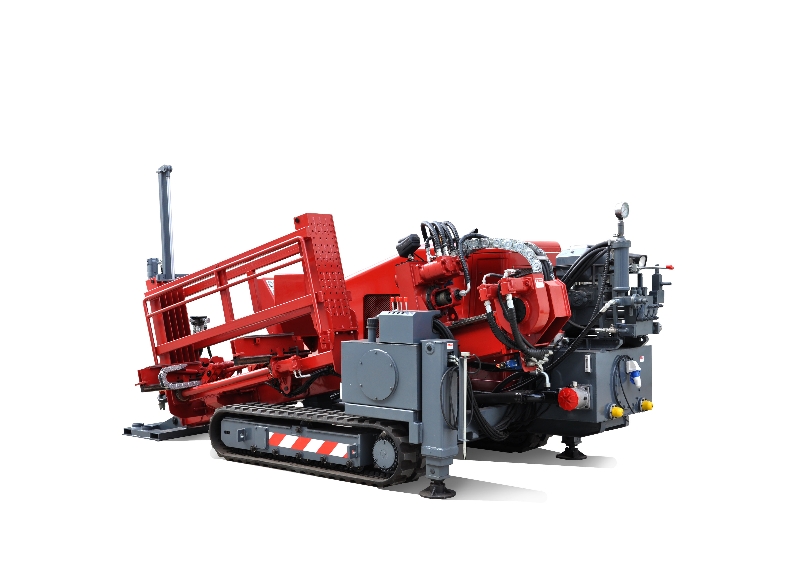

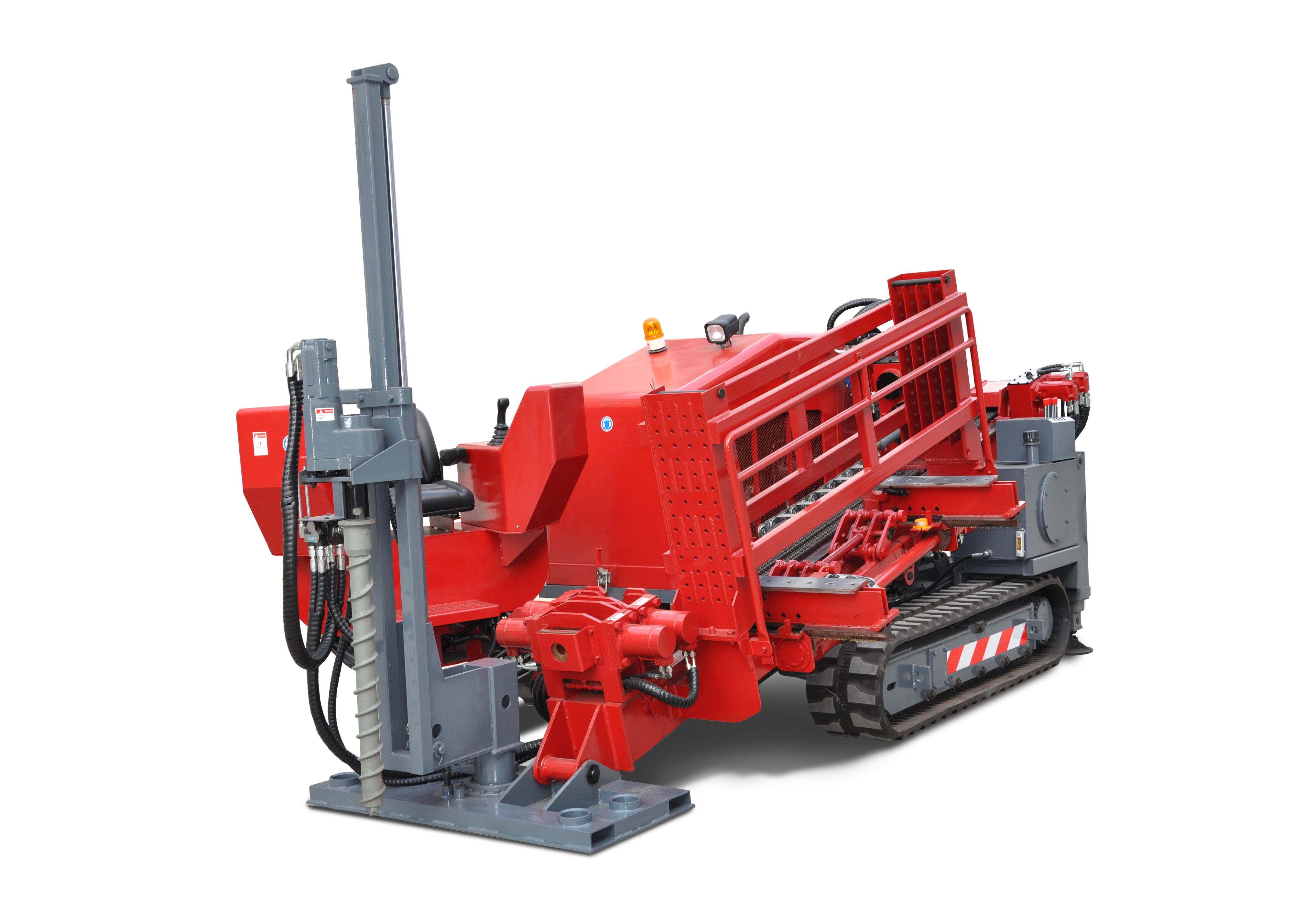

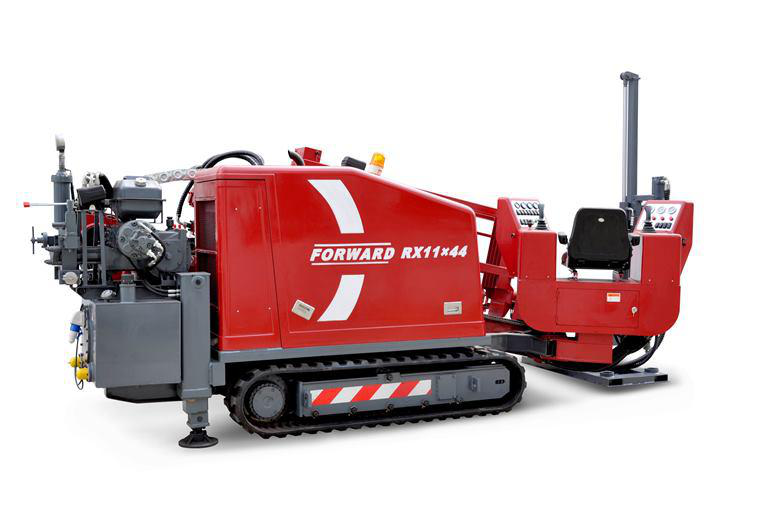

| Main machine FORWARD RX11×44 | 1 unit |
| Mud mixing system, 2 × 2 m³ | 1 set |
| Drill rod, Ø50 mm, L= 2 000 mm | 75 pic |
| Transmitter housing | 1 pic |
| Starter rod | 1 set |
| Reamer, Ø200/ Ø300/ Ø400/ Ø500 | 1 set |
| Pulling eyes (pin and box) | 1 set |
| Swivel, 15t | 1 pic |
| Spare parts and accessories | 1 set for free |
| *Standard configuration can be changed according to your requirement | |
