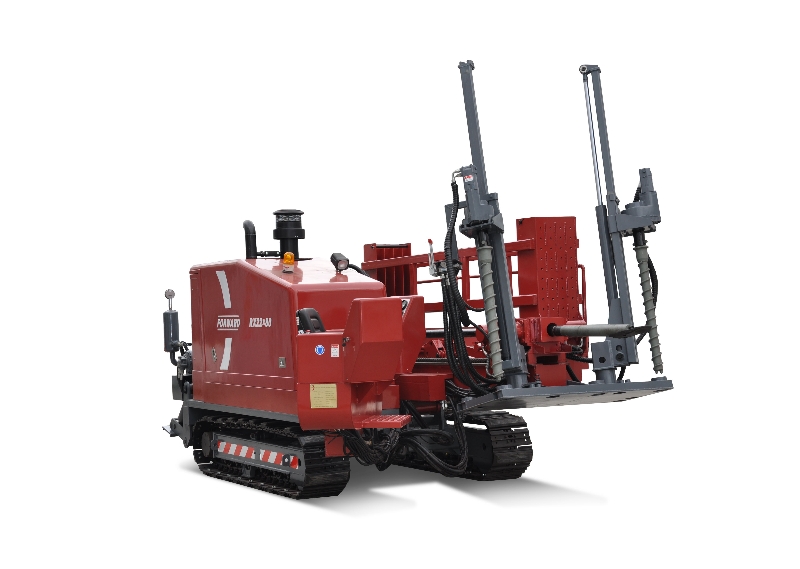

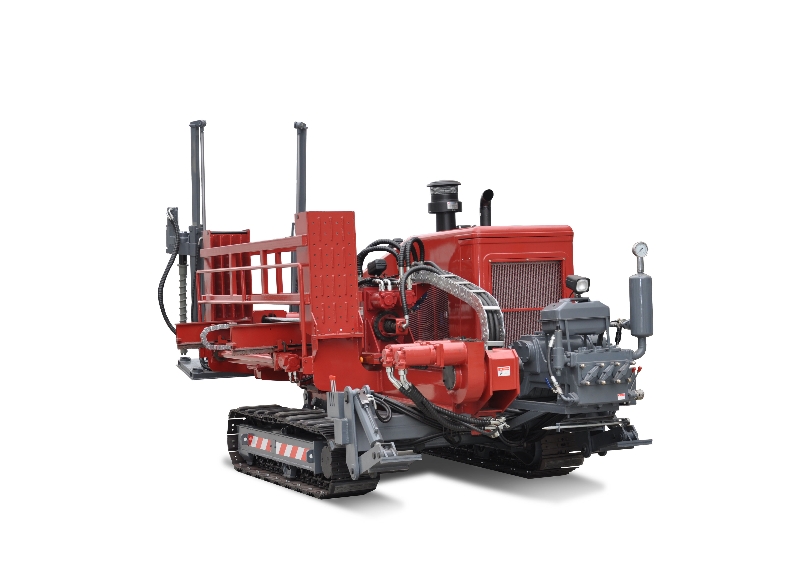

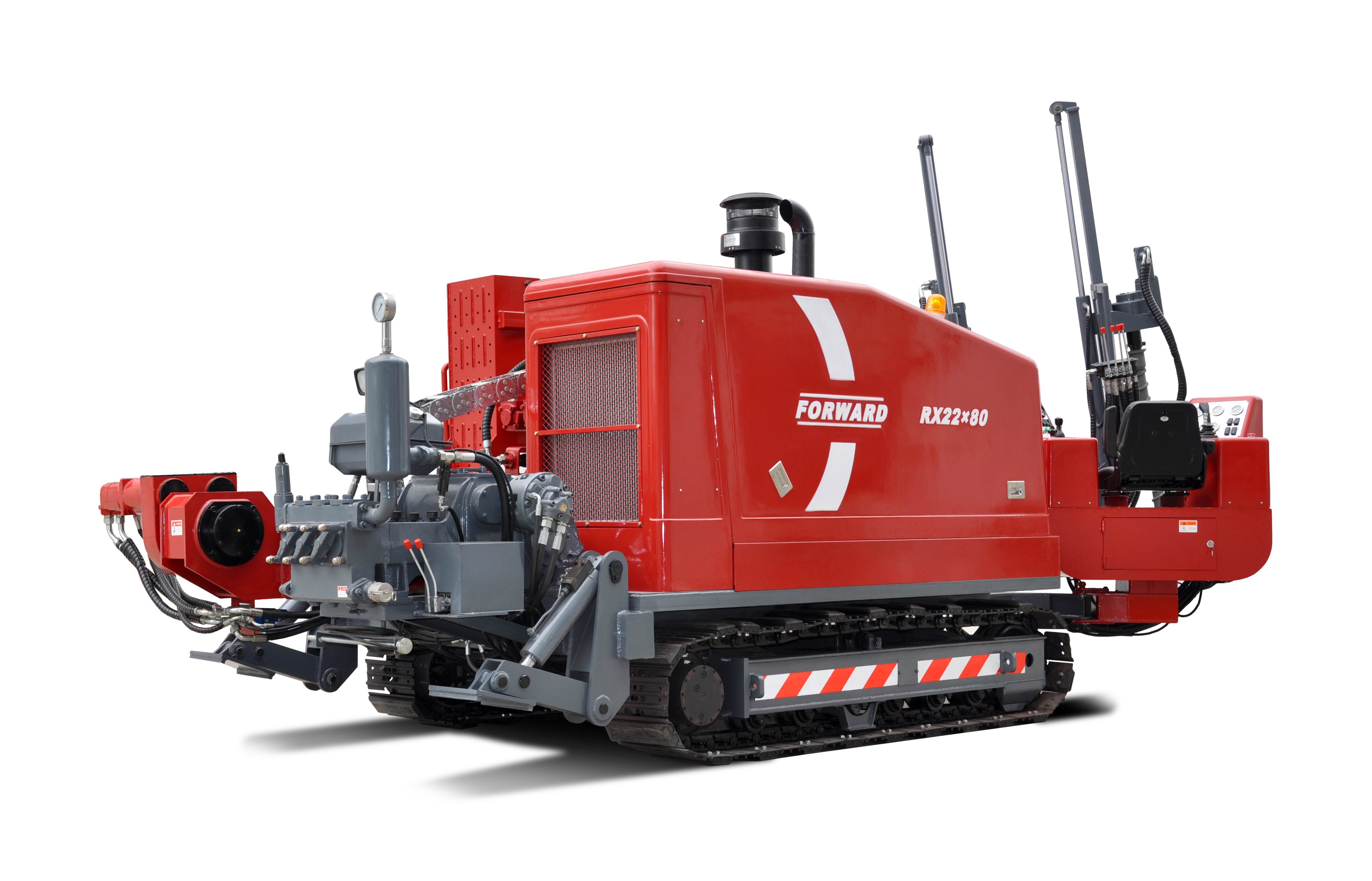

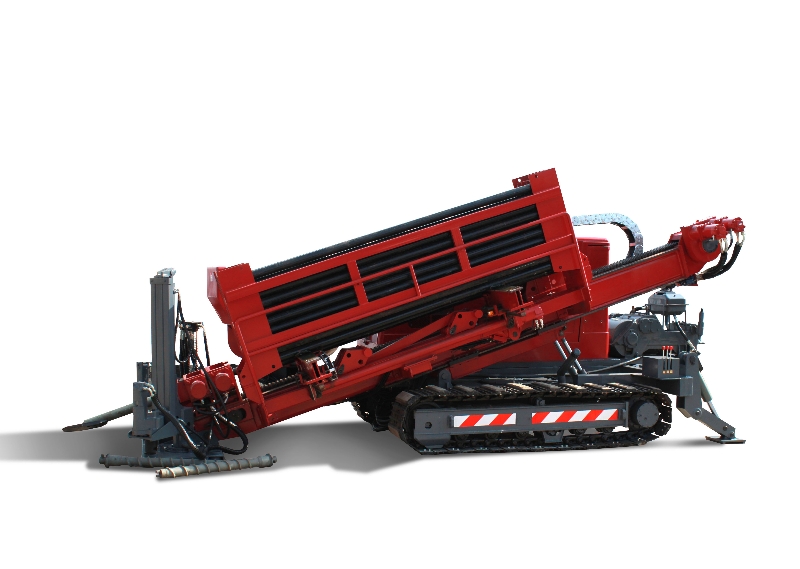

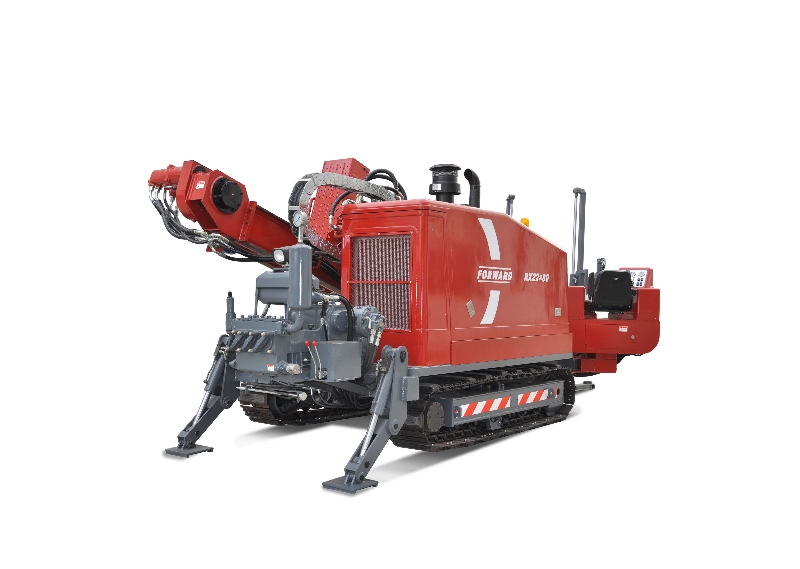

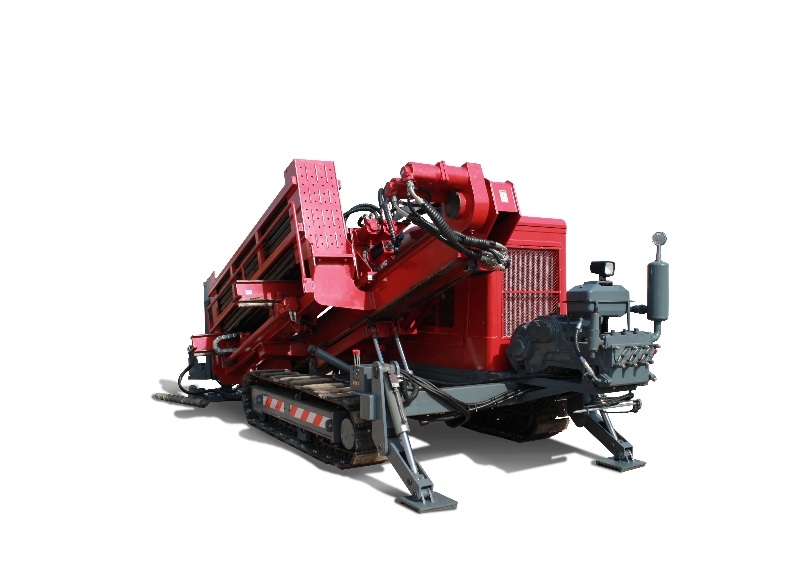

RX22x80 水平定向钻机

产品型号

前沿重工水平定向钻机(HDD Rig) RX22×80设计用于建造各种管道，包括光纤和电力线路、供水系统、天然气和石油管道等。

功能和优势

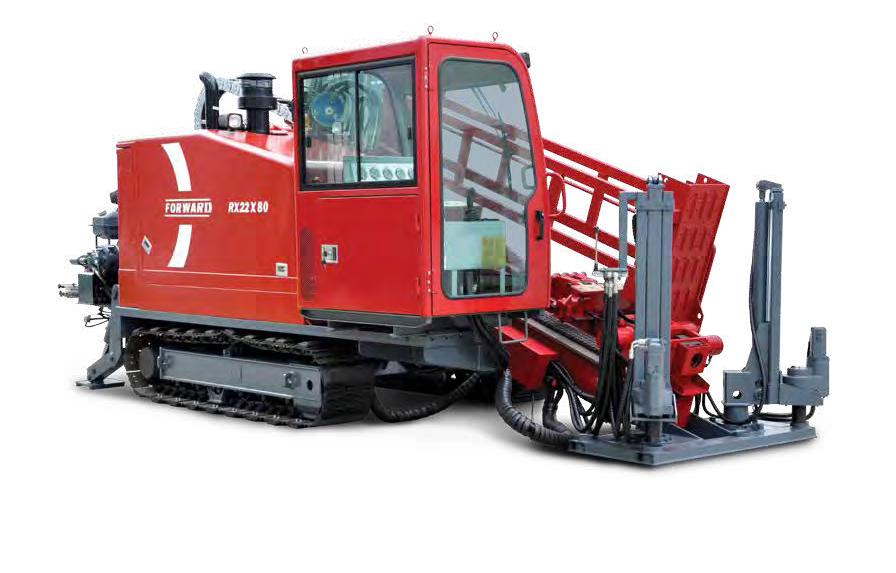

*前沿重工RX22×80非开挖钻机还有无操控室的型号

MAIN TECHNICAL CHARACTERISTICS OF FORWARD RX22*80
MAIN TECHNICAL CHARACTERISTICS OF FORWARD RX22*80
Diesel	Model		Weichai - DEUTZ	Weichai - DEUTZ
engine	Power		129 KW	175 Hp
Rotation	Gears		2	2
	Low speed	Rotation speed	0-90 rpm	0-90 rpm
	Low speed	Maximum spindle torque	8 250 Nm	6084 Ib/ft
	High speed	Rotation speed	0-180 rpm	0-180 rpm
	High speed	Maximum spindle torque	4125 Nm	3042 Ib/ft
Thrust and pullback	Move speed		3	3
	Low speed	Thrust force	220 kN	220 kN
		Pullback force	220 kN	220 kN
		Speed	0-9,5 m/min	0-31,2 ft/min
	High speed	Thrust force	110 kN	110 kN
		Pullback force	110 kN	110 kN
		Speed	0-19 m/min	0 -62,3 ft/min
	Carriage speed	Thrust force	110 kN	110 kN
		Pullback force	110 kN	110 kN
		Speed	0-42 m/min	0-137,8 ft/min
Drilling angle			10-18°	10-18°
Clamping system		Jaws clamping spindle torque	10 500 Nm	7744,4 Ib/ft
Clamping system		Jaws reducing spindle torque	21000Nm	15488,8 Ib/ft
Mud pump		Maximum capacity	320 L/min	84,5gpm
Mud pump		Maximum pressure	10 MPa	1450 psi
Motion		Motion speed	0-3 kn/h	0-1,9 mph
Motion		Maximum elevation angle	25°	25°
Drilled		Lenght	3 000 mm	118.1 in
		Rod lock	Ø 82 mm	Ø 3.2 in
		Rod body	Ø 73 mm	Ø 2,87 in
		Max banding	6%	6%
		Weight	45 kg	99,21 lb
Loading capacity of drill rods holder			40 pc	40 pc
HDD rig weight (main machine)			9 000 kg	19842 lb
Dimensions (LW H)			6,42,22,52 m	217,283 ft
Rod feeding systems			+	+
Hydraulic system preheating			+	+
Fuel tank capacity			247 L	65,3 gal
Hydraulic tank capacity			365 L	96.4 gal
