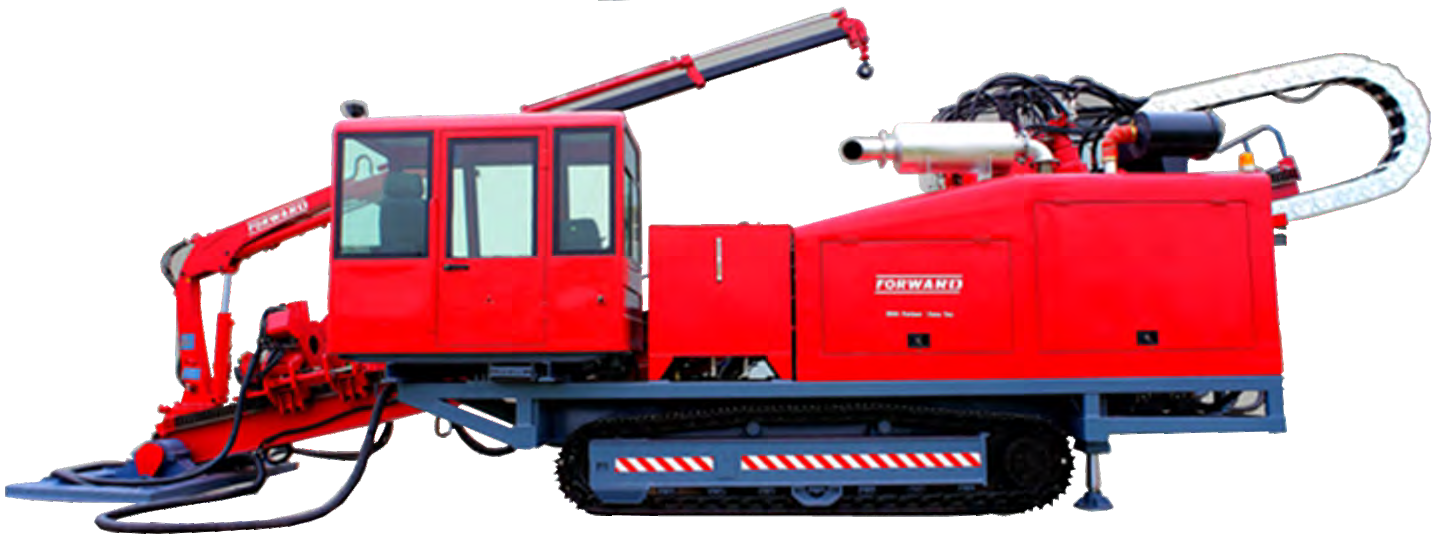

RX40x160 水平定向钻机

产品型号

前沿重工水平定向钻机(HDD Rig) RX11×44设计用于在城市区域空间紧张条件下建设各种管道，包括光纤和电力线路、供水系统、天然气和石油管道等。

功能和优势

钻杆螺纹接头配有专业润滑机构

泥浆泵更换钻杆时特意配套可节省钻井液的液压球阀

履带+强力橡胶垫片、防止损坏路面

发动机空气歧管和液压油的专业预热系统

钻杆展开力的精细控制

特配折叠塑料罩以确保方便维护
大容量泥浆泵

MAIN TECHNICAL CHARACTERISTICS OF FORWARD RX40^160
MAIN TECHNICAL CHARACTERISTICS OF FORWARD RX40^160
Diesel	Model		Weichai- DEUTZ	Weichai- DEUTZ
engine	Power		176 KW	239 Hp
Rotation	Gears		2	2
	Low speed	Rotation speed	0-80 rpm	0-80 rpm
	Low speed	Maximum spindle torque	16 000Nm	11800,9 Ib/ft
	High speed	Rotation speed	0-160 rpm	0-160 rpm
	High speed	Maximum spindle torque	8000 Nm	5900,4 Ib/ft
Thrust and pullback	Move speed		2	2
	Low speed	Thrust force	410kN	410kN
		Pullback force	410 kN	410kN
		Speed	0-10 m/min	0-32,8 ft/min
	High speed	Thrust force	205 kN	205 kN
		Pullback force	205 kN	205 kN
		Speed	0-20 m/min	0 -65,5 ft/min
Drilling angle			10-18°	10-18°
Clamping system		Jaws clamping spindle torque	15 000Nm	11063,44 Ib/ft
Clamping system		Jaws reducing spindle torque	30 000 Nm	22126,8 Ib/ft
Mud pump		Maximum capacity	600 L/min	158,5 gpm
Mud pump		Maximum pressure	10 MPa	1740,45 psi
Motion		Motion speed	0-3 km/h	0-1,9 mph
Motion		Maximum elevation angle	25°	25°
Drill rod		Lenght	3 000 mm	118,1 in
		Rod lock	Ø 92 mm	Ø 3,6 in
		Rod body	Ø 83 mm	Ø 3,2 in
		Max banding	5%	5%
		Weight	81kg	180,71b
Loading capacity of drill rods holder			30 pc	30 pc
HDD rig weight (main machine)			13 600 kg	29983 lb
Dimensions (LxW xH)			7,00x2,28x2,30 m	22,9x7,48x7,54 ft
Rod feeding systems			+	+
Hydraulic system preheating			+	+
Fuel tank capacity			+	+
Hydraulic tank capacity			+	+
